CK SERIES
Stepped feeder bowls
Bowl geometry, spiral track and orientation tooling are selected for the component and production process.

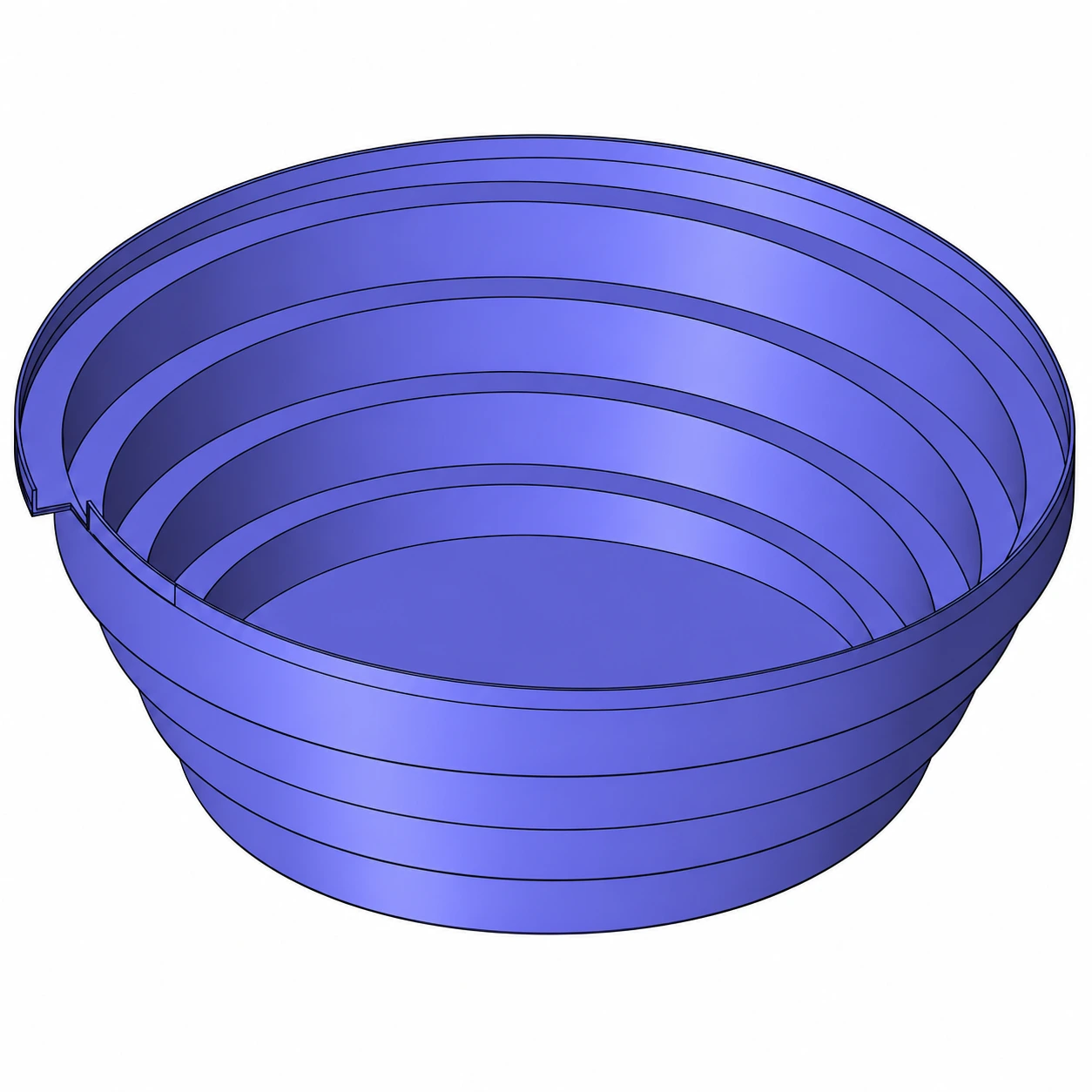

BOWL GEOMETRY
An expanding stepped form.
The CK series uses a stepped bowl with a larger outside diameter than its base diameter. For CK 650, the sheet specifies a 650 mm base and an 860 mm outside diameter. Installation space must allow for both.
- Track width matched to component geometry
- Orientation tooling for the required discharge position
- Application-specific contact surface and coating
- Drive-unit and mounting compatibility
ORIGINAL DIMENSIONS

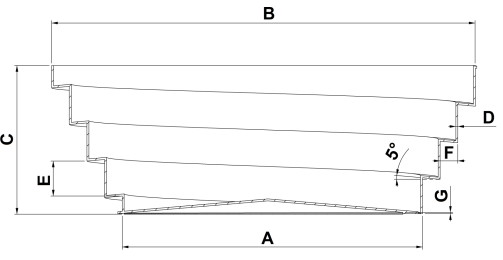

Drawing and model comparison.
Use the lettered dimensions in the drawing together with the table. Rise dimensions are in mm; they are not angle values.
| Specification / unit | CK 100 | CK 150 | CK 200 | CK 280 | CK 400 | CK 500 | CK 650 |
|---|---|---|---|---|---|---|---|
Bowl base diameter A (mm) | 100 | 150 | 200 | 280 | 400 | 500 | 650 |
Bowl outside diameter B (mm) | 125 | 175 | 250 | 380 | 560 | 700 | 860 |
Bowl height C (mm) | 35 | 65 | 80 | 150 | 180 | 260 | 300 |
Bowl wall thickness D (mm) | 1.5 | 2 | 2 | 2 | 2 | 2 | 2 |
Track rise dimension E (mm) | 15 | 25 | 30 | 40 | 60 | 80 | 90 |
Spiral track width F (mm) | 10 | 10 | 15 | 20 | 30 | 40 | 60 |
Dimensions are approximate; deviations and technical changes are possible. Linear dimensions are in mm unless otherwise stated. Final configuration is confirmed for the application.
