SYSTEM COMPONENTS

Configure the feeder around your process.

Drive units, bowls, supports and control equipment are selected together for component handling and machine integration.

MOUNTING & FLOW CONTROL

Equipment for a complete feeding system.

Each element is assessed with the selected drive, component, working height and machine layout.

FEEDING EQUIPMENT

Bowl feeder supports

Support the bowl feeder at the required working height. Bowl discharge, machine inlet and available mounting space are considered together.

Discuss this equipment →

FEEDING EQUIPMENT

Support connections

Connect the feeder to its support structure. Mounting geometry is selected for the drive unit and system layout.

Discuss this equipment →

FEEDING EQUIPMENT

Acoustic covers

Considered where acoustic control is required. Access, cleaning and component replenishment requirements form part of the cover design.

Discuss this equipment →

FEEDING EQUIPMENT

Bowl level control

Helps monitor component levels inside the bowl. Level control is coordinated with replenishment and downstream demand.

Discuss this equipment →

FEEDING EQUIPMENT

Bowl hub flanges

Connect the bowl to its drive unit. Mounting dimensions and compatibility are checked against the bowl and drive model.

Discuss this equipment →

FEEDING EQUIPMENT

Linear feeder supports

Position the linear feeder at the machine inlet height. Selected together with track length, load and discharge position.

Discuss this equipment →

ORIGINAL ACCESSORY DATA

Compare accessory mounting dimensions.

AS, AB, SK, DK, GF and VLA data transcribed from the supplied TUTUS drawings. Symbols match the original source image. A dash means the source gives no value.

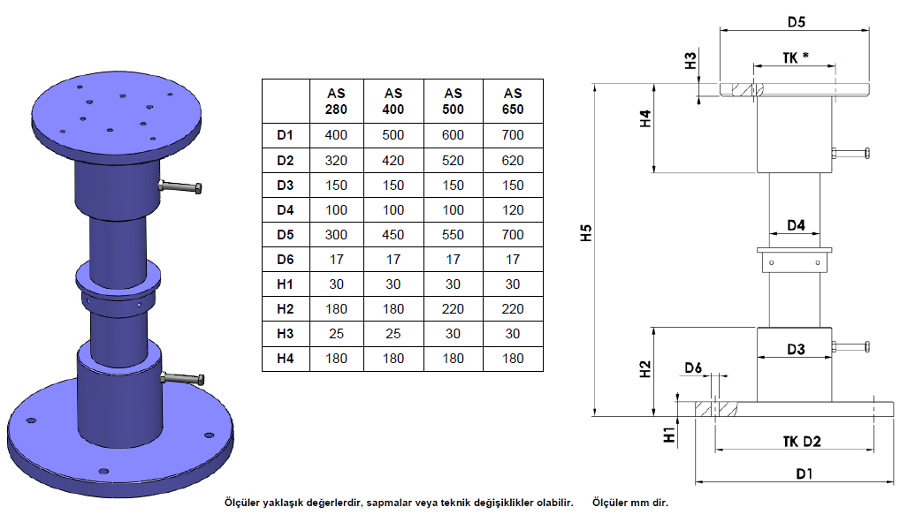

Bowl feeder supports

Model view

Bowl feeder supports — AS series
Specification / unit	AS 280	AS 400	AS 500	AS 650
Drawing dimension `D1` (mm)	400	500	600	700
Drawing dimension `D2` (mm)	320	420	520	620
Drawing dimension `D3` (mm)	150	150	150	150
Drawing dimension `D4` (mm)	100	100	100	120
Drawing dimension `D5` (mm)	300	450	550	700
Drawing dimension `D6` (mm)	17	17	17	17
Drawing dimension `H1` (mm)	30	30	30	30
Drawing dimension `H2` (mm)	180	180	220	220
Drawing dimension `H3` (mm)	25	25	30	30
Drawing dimension `H4` (mm)	180	180	180	180

Dimensions are approximate; deviations and technical changes are possible. Linear dimensions are in mm unless otherwise stated. Final configuration is confirmed for the application.

Original drawing and table

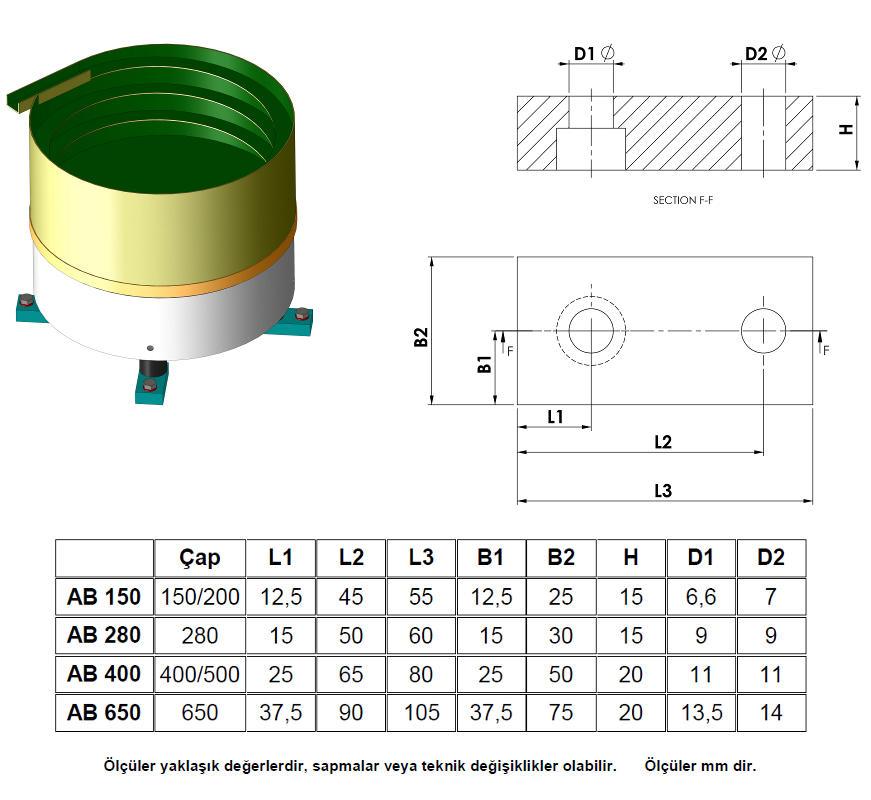

Support connections

Model view

Support connections — AB series
Specification / unit	AB 150	AB 280	AB 400	AB 650
Compatible bowl diameter `Ø` (mm)	150/200	280	400/500	650
Drawing dimension `L1` (mm)	12.5	15	25	37.5
Drawing dimension `L2` (mm)	45	50	65	90
Drawing dimension `L3` (mm)	55	60	80	105
Drawing dimension `B1` (mm)	12.5	15	25	37.5
Drawing dimension `B2` (mm)	25	30	50	75
Drawing dimension `H` (mm)	15	15	20	20
Drawing dimension `D1` (mm)	6.6	9	11	13.5
Drawing dimension `D2` (mm)	7	9	11	14

Dimensions are approximate; deviations and technical changes are possible. Linear dimensions are in mm unless otherwise stated. Final configuration is confirmed for the application.

Original drawing and table

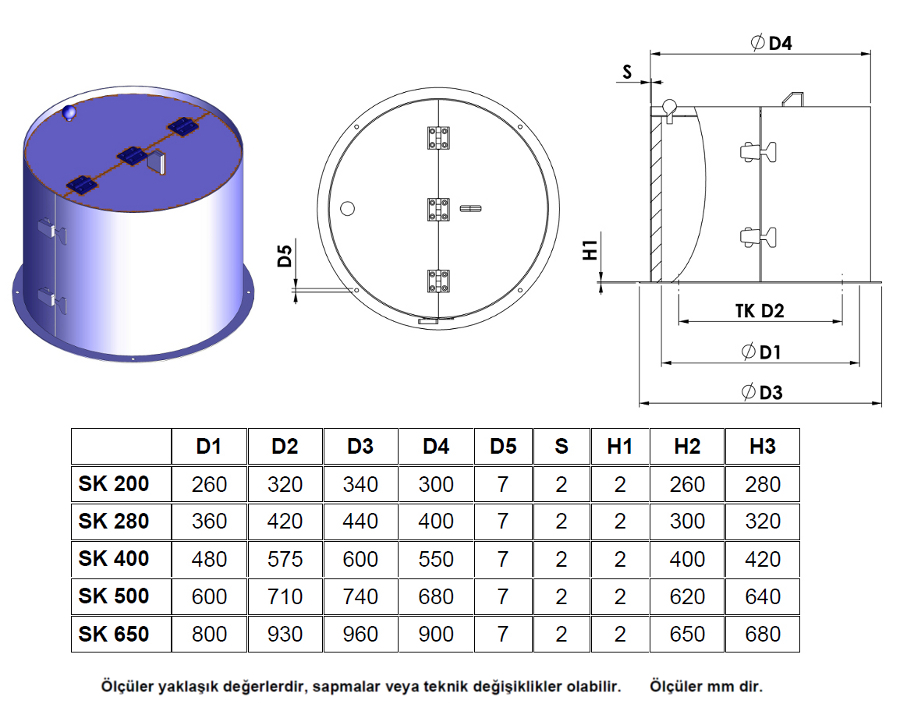

Acoustic covers

Model view

Acoustic covers — SK series
Specification / unit	SK 200	SK 280	SK 400	SK 500	SK 650
Drawing dimension `D1` (mm)	260	360	480	600	800
Drawing dimension `D2` (mm)	320	420	575	710	930
Drawing dimension `D3` (mm)	340	440	600	740	960
Drawing dimension `D4` (mm)	300	400	550	680	900
Drawing dimension `D5` (mm)	7	7	7	7	7
Drawing dimension `S` (mm)	2	2	2	2	2
Drawing dimension `H1` (mm)	2	2	2	2	2
Drawing dimension `H2` (mm)	260	300	400	620	650
Drawing dimension `H3` (mm)	280	320	420	640	680

Dimensions are approximate; deviations and technical changes are possible. Linear dimensions are in mm unless otherwise stated. Final configuration is confirmed for the application.

Original drawing and table

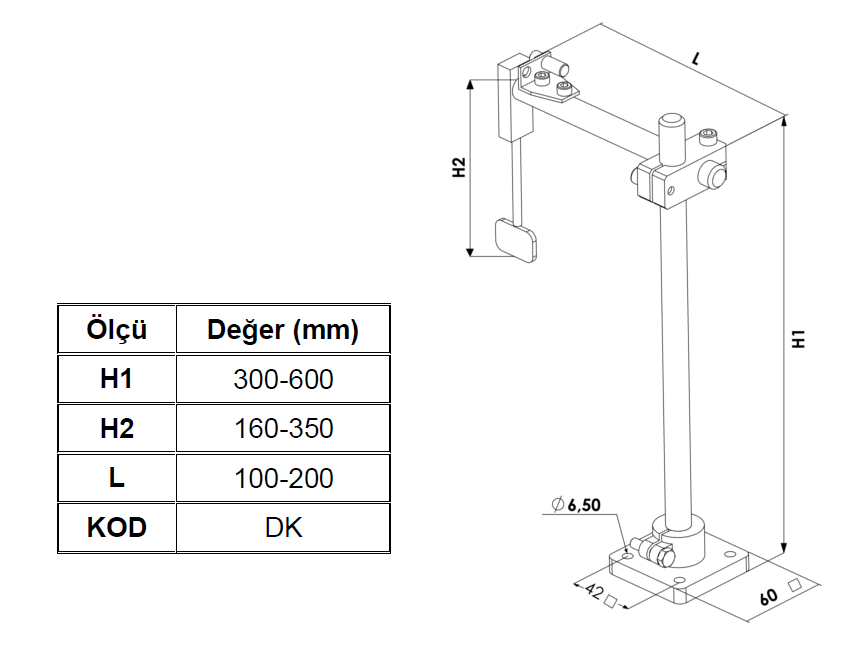

Bowl level control

Model view

Bowl level control — DK
Specification / unit	DK
Drawing dimension `H1` (mm)	300–600
Drawing dimension `H2` (mm)	160–350
Drawing dimension `L` (mm)	100–200

Dimensions are approximate; deviations and technical changes are possible. Linear dimensions are in mm unless otherwise stated. Final configuration is confirmed for the application.

Original drawing and table

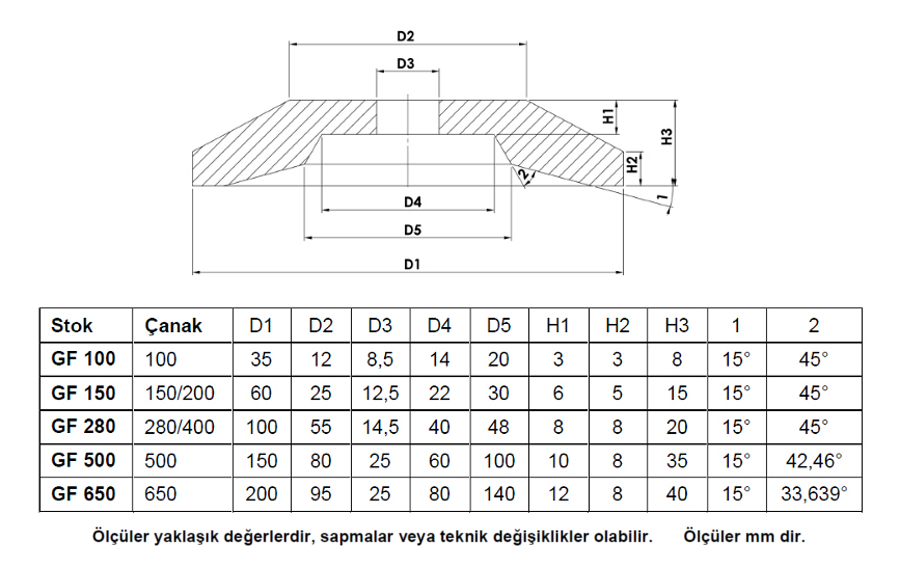

Bowl hub flanges

Model view

Bowl hub flanges — GF series
Specification / unit	GF 100	GF 150	GF 280	GF 500	GF 650
Compatible bowl diameter `Ø` (mm)	100	150/200	280/400	500	650
Drawing dimension `D1` (mm)	35	60	100	150	200
Drawing dimension `D2` (mm)	12	25	55	80	95
Drawing dimension `D3` (mm)	8.5	12.5	14.5	25	25
Drawing dimension `D4` (mm)	14	22	40	60	80
Drawing dimension `D5` (mm)	20	30	48	100	140
Drawing dimension `H1` (mm)	3	6	8	10	12
Drawing dimension `H2` (mm)	3	5	8	8	8
Drawing dimension `H3` (mm)	8	15	20	35	40
Surface angle `1` (°)	15	15	15	15	15
Surface angle `2` (°)	45	45	45	42.46	33.639

Dimensions are approximate; deviations and technical changes are possible. Linear dimensions are in mm unless otherwise stated. Final configuration is confirmed for the application.

Original drawing and table

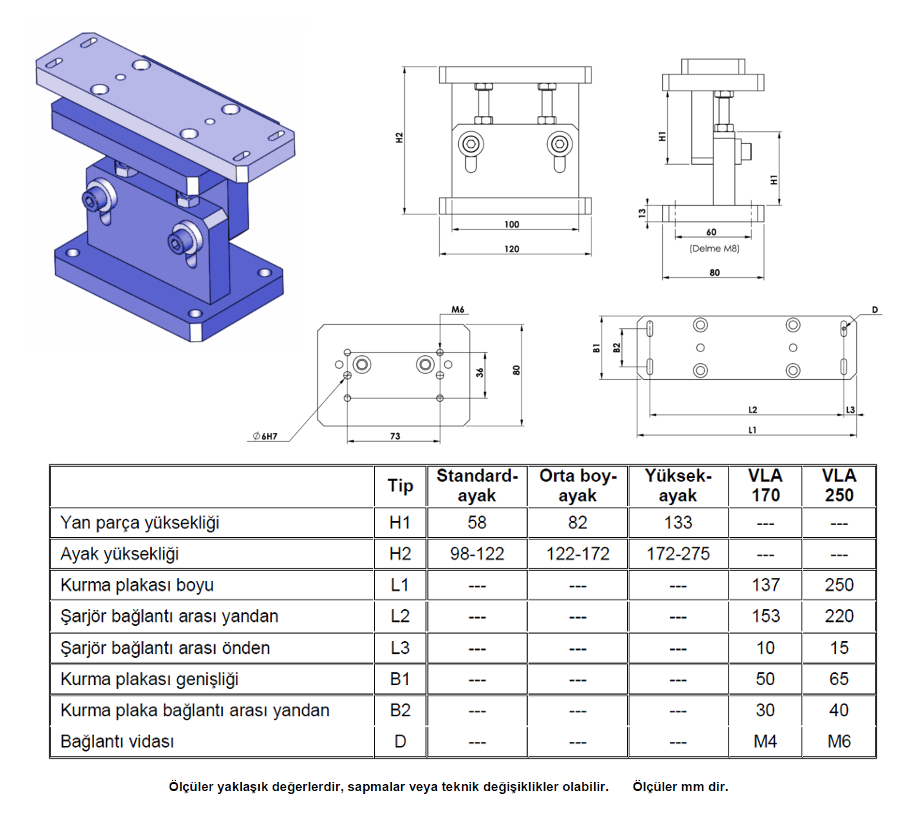

Linear feeder supports

Model view

Linear feeder supports and mounting plates
Specification / unit	Standart / Standard	Orta / Medium	Yüksek / Tall	VLA 170	VLA 250
Side member height `H1` (mm)	58	82	133	—	—
Support height `H2` (mm)	98–122	122–172	172–275	—	—
Mounting plate length `L1` (mm)	—	—	—	137	250
Track mounting spacing (side view) `L2` (mm)	—	—	—	153	220
Track mounting spacing (front view) `L3` (mm)	—	—	—	10	15
Mounting plate width `B1` (mm)	—	—	—	50	65
Plate mounting spacing (side view) `B2` (mm)	—	—	—	30	40
Mounting screw `D`	—	—	—	M4	M6

Dimensions are approximate; deviations and technical changes are possible. Linear dimensions are in mm unless otherwise stated. Final configuration is confirmed for the application.

Original drawing and table

VS SERIES

Circular feeder drive units.

The drive supports the bowl and generates the vibratory motion. Bowl mass, mounting arrangement and tooling must be assessed together.

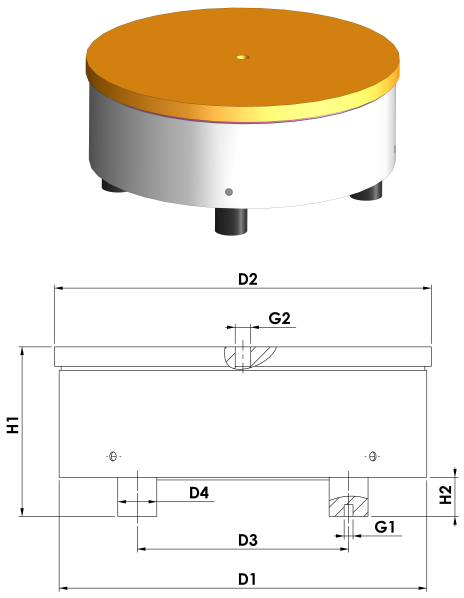

**VS drive unit — catalogue view and dimensions**Original TUTUS catalogue illustration. Dimensions refer to the matching technical table.

Model view

Circular feeder drive units — VS series
Specification / unit	VS 100	VS 150	VS 200	VS 280	VS 400	VS 500	VS 650
Drive diameter `ØD1` (mm)	100	150	200	280	400	500	650
Drive top plate diameter `ØD2` (mm)	107	162	210	290	410	510	665
Lower mounting diameter `ØD3` (mm)	78	120	166	230	340	430	560
Foot diameter `ØD4` (mm)	15	25	25	30	50	50	75
Drive height `H1` (mm)	82.5	114	115	130	165	202	235
Foot height `H2` (mm)	15	20	20	30	30	30	55
Foot mounting thread `G1`	M4	M6	M6	M8	M10	M10	M12
Bowl mounting thread `G2`	M6	M8	M10	M12	M16	M24	M24
Electrical supply	220 V · 50/60 Hz	220 V · 50/60 Hz	220 V · 50/60 Hz	220 V · 50/60 Hz	220 V · 50/60 Hz	220 V · 50/60 Hz	220 V · 50/60 Hz

Dimensions are approximate; deviations and technical changes are possible. Linear dimensions are in mm unless otherwise stated. Final configuration is confirmed for the application.

CS SERIES

Cylindrical feeder bowls.

Straight-sided bowls with an internal spiral track. Tooling and contact surfaces are configured for the component and its required orientation.

View bowl details →

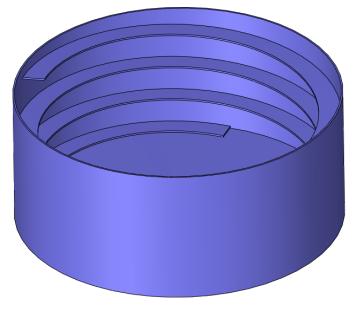

Cylindrical bowl — original catalogue render

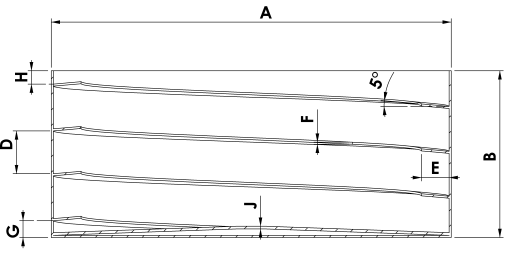

**CS bowl section — A to J dimensions**Original TUTUS catalogue illustration. Dimensions refer to the matching technical table.

Model view

Cylindrical bowls — CS series
Specification / unit	CS 100	CS 150	CS 200	CS 280	CS 400	CS 500	CS 650
Bowl outside diameter `A` (mm)	100	155	200	280	400	500	650
Bowl height `B` (mm)	50	80	100	120	160	240	280
Bowl wall thickness `C` (mm)	2	2	2	2	2	2	2
Track rise dimension `D` (mm)	15	25	30	40	60	80	90
Spiral track width `E` (mm)	8	10	15	20	25	40	70
Spiral track thickness `F` (mm)	1.5	1.5	1.5	1.5	2	2	2
Spiral start dimension `G` (mm)	10	10	10	10	15	20	20
Spiral end dimension `H` (mm)	10	15	15	20	25	40	40
Bottom thickness `J` (mm)	1.5	1.5	2	2	2	2	2

Dimensions are approximate; deviations and technical changes are possible. Linear dimensions are in mm unless otherwise stated. Final configuration is confirmed for the application.

CK SERIES

Stepped feeder bowls.

Stepped bowls have different base and outside diameters. The wider upper geometry must be included when checking the available installation space.

View bowl details →

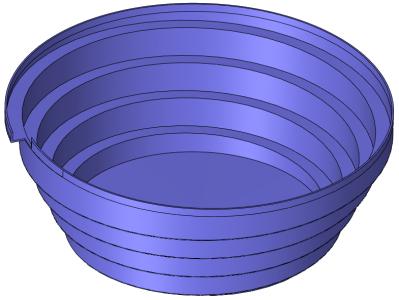

Stepped bowl — original catalogue render

**CK bowl section — A to F dimensions**Original TUTUS catalogue illustration. Dimensions refer to the matching technical table.

Model view

Stepped bowls — CK series
Specification / unit	CK 100	CK 150	CK 200	CK 280	CK 400	CK 500	CK 650
Bowl base diameter `A` (mm)	100	150	200	280	400	500	650
Bowl outside diameter `B` (mm)	125	175	250	380	560	700	860
Bowl height `C` (mm)	35	65	80	150	180	260	300
Bowl wall thickness `D` (mm)	1.5	2	2	2	2	2	2
Track rise dimension `E` (mm)	15	25	30	40	60	80	90
Spiral track width `F` (mm)	10	10	15	20	30	40	60

Dimensions are approximate; deviations and technical changes are possible. Linear dimensions are in mm unless otherwise stated. Final configuration is confirmed for the application.

DISCUSS YOUR APPLICATION

Let us engineer the right feeding system for your component.

Send a component photo, drawing and target feed rate. We will evaluate the right configuration for your process.

Request a Quote Send Email
