Series example · model dimensions below TBS 280 S
TBS 280 S Vibratory Bowl Feeder
280 mm bowl diameter, 2.2 L volume and 200 VA power; orientation tooling is configured for the component.
View technical details →PRODUCT RANGE
Feeding systems and components.
Drive families provide a starting point; bowls, tracks and accessories are selected for the actual component and application.

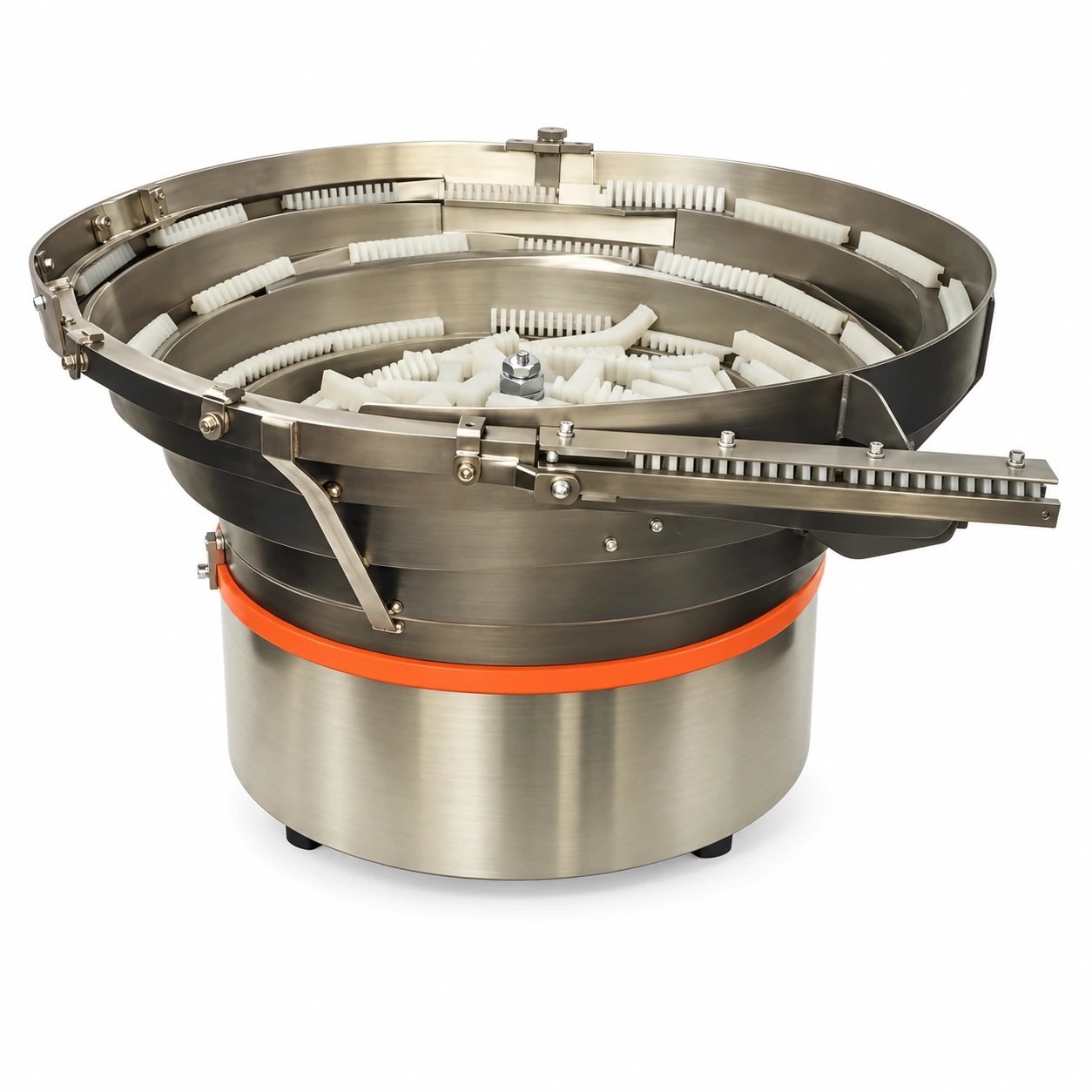

TBS
Vibratory bowl feeders.
Series example · model dimensions below Series example · model dimensions below TBS 400 S
TBS 400 S Vibratory Bowl Feeder
400 mm cylindrical bowl diameter, 6.5 L volume and 600 VA drive power.
View technical details → Series example · model dimensions below TBS 500 S
TBS 500 S Vibratory Bowl Feeder
500 mm bowl diameter and 16 L cylindrical bowl volume with a 1200 VA drive.
View technical details → Series example · model dimensions below TBS 650 S
TBS 650 S Vibratory Bowl Feeder
650 mm bowl diameter and 28 L cylindrical bowl volume with application-specific orientation tooling.
View technical details →VL

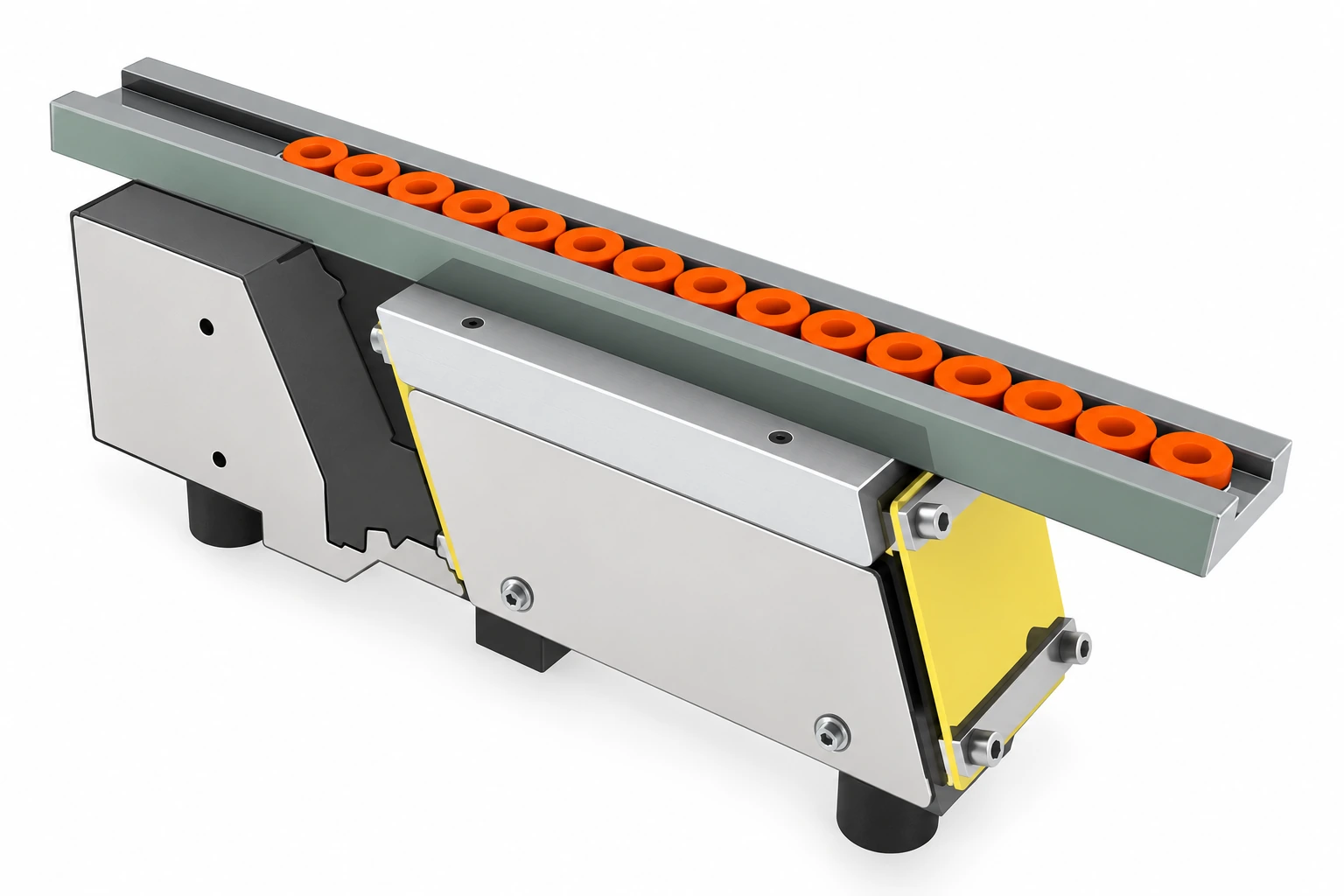

Vibratory linear feeders.
Series example · model dimensions below VL 250
VL 250 Vibratory Linear Feeder
Controlled component transfer with 260 mm overall length, 60 VA power and 3 kg drive weight.
View technical details → Series example · model dimensions below VL 470
VL 470 Vibratory Linear Feeder
Controlled component transfer with 465 mm overall length, 120 VA power and 5 kg drive weight.
View technical details → Series example · model dimensions below VL 800
VL 800 Vibratory Linear Feeder
Controlled component transfer with 800 mm overall length, 600 VA power and 15 kg drive weight.
View technical details →Drive units and bowls
Compare cylindrical bowls, stepped bowls and circular drive-unit dimensions.
View accessories →Vibration coils
Electromagnetic components for vibration generation in spring-mass systems.
View vibration coils →Custom feeding solutions
Configure orientation, transfer and integration around your component and process.
Explore the approach →DISCUSS YOUR APPLICATION
Let us engineer the right feeding system for your component.
Send a component photo, drawing and target feed rate. We will evaluate the right configuration for your process.
