TBS 400 S Vibratory Bowl Feeder
400 mm cylindrical bowl diameter, 6.5 L volume and 600 VA drive power. Bowl or track tooling is configured around the component, required orientation and production target.
Request a quote for this modelTechnical specifications

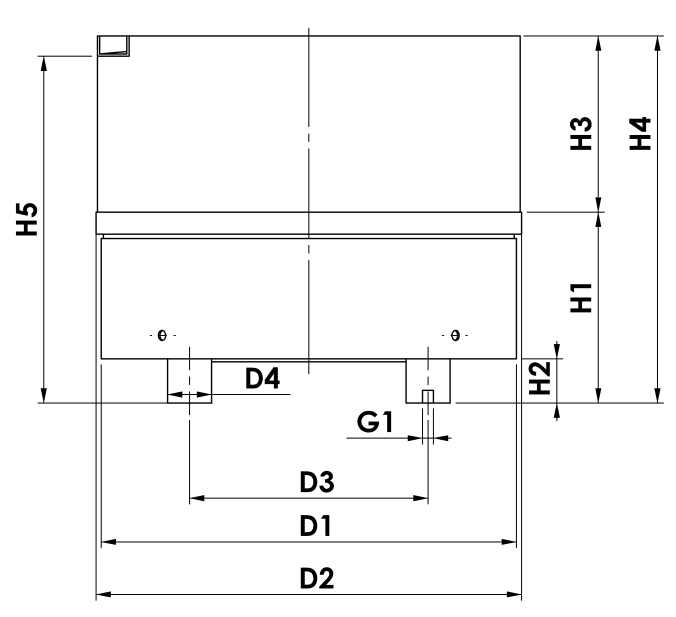

| Bowl diameter (ØD1) | 400 mm |
|---|---|
| Drive top plate (ØD2) | 410 mm |
| Lower connection (ØD3) | 340 mm |
| Foot diameter (ØD4) | 50 mm |
| Drive height (H1) | 165 mm |
| Foot height (H2) | 30 mm |
| Bowl height (H3) | 160 mm |
| Overall height (H4) | 325 mm |
| Outlet height (H5) | 285 mm |
| Outlet length (L1) | 200 mm |
| Foot thread (G1) | M10 |
| Bowl connection (G2) | M16 |
| Bowl volume | 6.5 L |
| Electrical supply | 220 V · 50/60 Hz |
| Power / current | 600 VA / 2.7 A |
| Foot mounting pattern (X/Y) | X |
Data source: TUTUS cylindrical feeder technical sheet. Dimensions are approximate and may change. Selection requires the component, moving mass and target feed rate.
